Schema documentation for component source

Showing:

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element ConceptMapGroupDefinition / source

Namespace

No namespace

Diagram

Type

SourceOrTargetCodeSystem

Properties

content	complex
minOccurs	1
maxOccurs	1

Attributes

QName	Type	Use
codeSystem	Uri	required

Source

<xs:element name="source" minOccurs="1" maxOccurs="1" type="SourceOrTargetCodeSystem"/>

Element ConceptMapGroupDefinition / target

Namespace

No namespace

Diagram

Type

SourceOrTargetCodeSystem

Properties

content	complex
minOccurs	1
maxOccurs	1

Attributes

QName	Type	Use
codeSystem	Uri	required

Source

<xs:element name="target" minOccurs="1" maxOccurs="1" type="SourceOrTargetCodeSystem"/>

Element ConceptMapGroupDefinition / element

Namespace

No namespace

Diagram

Type

ConceptMapElement

Properties

content	complex
minOccurs	1
maxOccurs	unbounded

Model

target+

Children

target

Instance

<element code="" displayName="">
  <target code="" displayName="" relationship="">{1,unbounded}</target>
</element>

Attributes

QName

Type

Use

Annotation

code

EnumerationString

required

displayName

NonEmptyString

optional

A short description string for the designation

Source

<xs:element name="element" minOccurs="1" maxOccurs="unbounded" type="ConceptMapElement"/>

Complex Type ConceptMapGroupDefinition

Namespace

No namespace

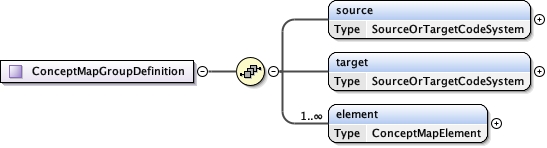

Diagram

Used by

Element

ConceptMapType/group

Model

source , target , element+

Children

element, source, target

Source

<xs:complexType name="ConceptMapGroupDefinition">
  <xs:sequence>
    <xs:element name="source" minOccurs="1" maxOccurs="1" type="SourceOrTargetCodeSystem"/>
    <xs:element name="target" minOccurs="1" maxOccurs="1" type="SourceOrTargetCodeSystem"/>
    <xs:element name="element" minOccurs="1" maxOccurs="unbounded" type="ConceptMapElement"/>
  </xs:sequence>
</xs:complexType>
