Schema documentation for component defineVariable

Showing:

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element defineVariable

Namespace

No namespace

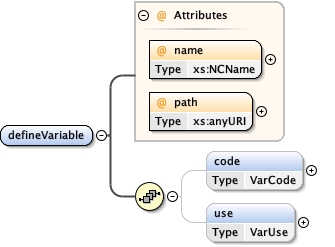

Diagram

Properties

content	complex
mixed	true

Used by

Complex Types

RuleDefinition, TemplateDefinition

Model

code{0,1} , use{0,1}

Children

code, use

Instance

<defineVariable name="" path="">
  <code code="" codeSystem="">{0,1}</code>
  <use as="" path="">{0,1}</use>
</defineVariable>

Attributes

QName	Type	Use
name	xs:NCName	required
path	xs:anyURI	required

Source

<xs:element name="defineVariable">
  <xs:complexType mixed="true">
    <xs:sequence>
      <xs:element name="code" minOccurs="0" maxOccurs="1" type="VarCode"/>
      <xs:element name="use" minOccurs="0" maxOccurs="1" type="VarUse"/>
    </xs:sequence>
    <xs:attribute name="name" type="xs:NCName" use="required"/>
    <xs:attribute name="path" type="xs:anyURI" use="required"/>
  </xs:complexType>
</xs:element>

Element defineVariable / code

Namespace

No namespace

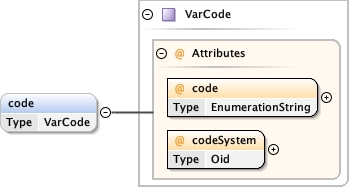

Diagram

Type

VarCode

Properties

content	complex
minOccurs	0
maxOccurs	1

Attributes

QName	Type	Use
code	EnumerationString	required
codeSystem	Oid	required

Source

<xs:element name="code" minOccurs="0" maxOccurs="1" type="VarCode"/>

Element defineVariable / use

Namespace

No namespace

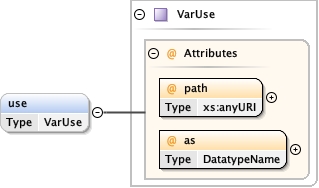

Diagram

Type

VarUse

Properties

content	complex
minOccurs	0
maxOccurs	1

Attributes

QName	Type	Use
as	DatatypeName	required
path	xs:anyURI	required

Source

<xs:element name="use" minOccurs="0" maxOccurs="1" type="VarUse"/>

Attribute defineVariable / @name

Namespace

No namespace

Type

xs:NCName

Properties

use	required

Used by

Element

defineVariable

Source

<xs:attribute name="name" type="xs:NCName" use="required"/>

Attribute defineVariable / @path

Namespace

No namespace

Type

xs:anyURI

Properties

use	required

Used by

Element

defineVariable

Source

<xs:attribute name="path" type="xs:anyURI" use="required"/>
