Element vocabulary
Namespace No namespace
Annotations

Used for attributes of "coded" types. Allows assertion of one or more codes, code systems or value sets.

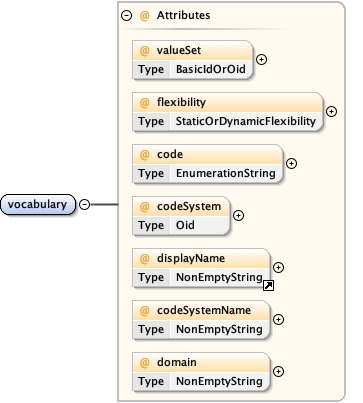

Diagram
DiagramDECOR_xsd_Element_vocabulary.tmp#vocabulary_valueSetDECOR_xsd_Element_vocabulary.tmp#vocabulary_flexibilityDECOR_xsd_Element_vocabulary.tmp#vocabulary_codeDECOR_xsd_Element_vocabulary.tmp#vocabulary_codeSystemDECOR_xsd_Attribute_displayName.tmp#displayNameDECOR_xsd_Element_vocabulary.tmp#vocabulary_codeSystemNameDECOR_xsd_Element_vocabulary.tmp#vocabulary_domain
Properties
content complex
Used by
Element attribute
Complex Type RuleDefinition
Attributes
QName Type Use Annotation
code EnumerationString optional
codeSystem Oid optional
codeSystemName NonEmptyString optional
displayName NonEmptyString optional
A short description string for the designation
domain NonEmptyString optional
flexibility StaticOrDynamicFlexibility optional
Reference to a valueSet/@effectiveDate. Default is unspecified which means 'latest available version'.
valueSet BasicIdOrOid optional
Reference to a valueSet/@id or @name. References to @name are discouraged because they become ambiguous quickly.
Source

<xs:element name="vocabulary">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Used for attributes of "coded" types. Allows assertion of one or more codes, code systems or value sets.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <!-- value set assertions -->
    <xs:attribute name="valueSet" type="BasicIdOrOid" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en-US">Reference to a valueSet/@id or @name. References to @name are discouraged because they become ambiguous quickly.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="flexibility" type="StaticOrDynamicFlexibility" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en-US">Reference to a valueSet/@effectiveDate. Default is unspecified which means 'latest available version'.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <!-- code constraints -->
    <xs:attribute name="code" type="EnumerationString" use="optional"/>
    <xs:attribute name="codeSystem" type="Oid" use="optional"/>
    <!-- other constraints -->
    <xs:attribute ref="displayName" use="optional"/>
    <xs:attribute name="codeSystemName" type="NonEmptyString" use="optional"/>
    <!-- concept domain (a simple string as an "abstract" indication only) -->
    <xs:attribute name="domain" type="NonEmptyString" use="optional"/>
  </xs:complexType>
</xs:element>
Attribute vocabulary / @valueSet
Namespace No namespace
Annotations

Reference to a valueSet/@id or @name. References to @name are discouraged because they become ambiguous quickly.
Type BasicIdOrOid
Properties
use optional
Used by
Element vocabulary
Source

<xs:attribute name="valueSet" type="BasicIdOrOid" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Reference to a valueSet/@id or @name. References to @name are discouraged because they become ambiguous quickly.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute vocabulary / @flexibility
Namespace No namespace
Annotations

Reference to a valueSet/@effectiveDate. Default is unspecified which means 'latest available version'.
Type StaticOrDynamicFlexibility
Properties
use optional
Used by
Element vocabulary
Source

<xs:attribute name="flexibility" type="StaticOrDynamicFlexibility" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Reference to a valueSet/@effectiveDate. Default is unspecified which means 'latest available version'.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute vocabulary / @code
Namespace No namespace
Type EnumerationString
Properties
use optional
Facets
maxLength 128
Used by
Element vocabulary
Source

<xs:attribute name="code" type="EnumerationString" use="optional"/>
Attribute vocabulary / @codeSystem
Namespace No namespace
Type Oid
Properties
use optional
Facets
maxLength 255
pattern [0-2](\.(0|[1-9][0-9]*))*
Used by
Element vocabulary
Source

<xs:attribute name="codeSystem" type="Oid" use="optional"/>
Attribute vocabulary / @codeSystemName
Namespace No namespace
Type NonEmptyString
Properties
use optional
Facets
minLength 1
Used by
Element vocabulary
Source

<xs:attribute name="codeSystemName" type="NonEmptyString" use="optional"/>
Attribute vocabulary / @domain
Namespace No namespace
Type NonEmptyString
Properties
use optional
Facets
minLength 1
Used by
Element vocabulary
Source

<xs:attribute name="domain" type="NonEmptyString" use="optional"/>
