Element codedConceptBrowsable / designation
Namespace No namespace
Annotations

This is a browsable coded concept designation used for ART-DECOR Terminology Service (CADTS). Some
elements or attributes use shorter names for less space occupancy in the browsable format, g use BrowsableFreeFormMarkupWithLanguageCode

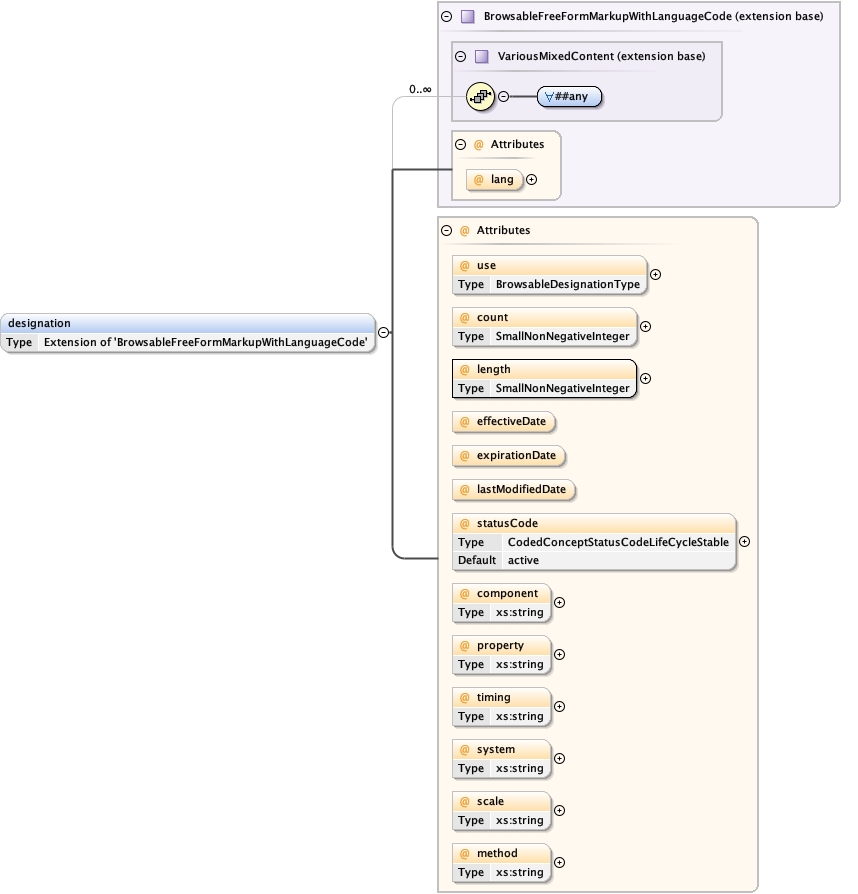

Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCodeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_useDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_countDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_lengthDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_effectiveDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_expirationDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_lastModifiedDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_statusCodeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_componentDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_propertyDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_timingDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_systemDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_scaleDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_designation_method
Type extension of BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
ANY element from ANY namespace
Attributes
QName Type Default Use Annotation
component xs:string optional
LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
count SmallNonNegativeInteger optional
Word count of the designation, used for sorting search results.
effectiveDate optional
expirationDate optional
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
lastModifiedDate optional
length SmallNonNegativeInteger required
String length of the designation, used for sorting search results.
method xs:string optional
LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
property xs:string optional
LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
scale xs:string optional
LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
statusCode CodedConceptStatusCodeLifeCycleStable active optional
Status of the coded concept during the design phase
system xs:string optional
LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
timing xs:string optional
LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
use BrowsableDesignationType optional
Type of designation (for that language), preferred, synonym, abbreviation, fully specified name
Source

<xs:element name="designation" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">This is a browsable coded concept designation used for ART-DECOR Terminology Service (CADTS). Some elements or attributes use shorter names for less space occupancy in the browsable format, g use BrowsableFreeFormMarkupWithLanguageCode</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:annotation>
      <xs:documentation xml:lang="en-US">A description for the designation</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
      <xs:extension base="BrowsableFreeFormMarkupWithLanguageCode">
        <xs:attribute name="use" type="BrowsableDesignationType" use="optional">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">Type of designation (for that language), preferred, synonym, abbreviation, fully specified name</xs:documentation>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="count" type="SmallNonNegativeInteger" use="optional">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">Word count of the designation, used for sorting search results.</xs:documentation>
            <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
              <extension>SPED</extension>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="length" type="SmallNonNegativeInteger" use="required">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">String length of the designation, used for sorting search results.</xs:documentation>
            <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
              <extension>SPED</extension>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="effectiveDate" use="optional"/>
        <xs:attribute name="expirationDate" use="optional"/>
        <xs:attribute name="lastModifiedDate" use="optional"/>
        <!-- from old times for backward compatibility -->
        <xs:attribute name="statusCode" type="CodedConceptStatusCodeLifeCycleStable" use="optional" default="active">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">Status of the coded concept during the design phase</xs:documentation>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="component" type="xs:string" use="optional">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
            <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
              <extension>LOINC</extension>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="property" type="xs:string" use="optional">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
            <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
              <extension>LOINC</extension>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="timing" type="xs:string" use="optional">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
            <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
              <extension>LOINC</extension>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="system" type="xs:string" use="optional">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
            <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
              <extension>LOINC</extension>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="scale" type="xs:string" use="optional">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
            <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
              <extension>LOINC</extension>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="method" type="xs:string" use="optional">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
            <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
              <extension>LOINC</extension>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / definition
Namespace No namespace

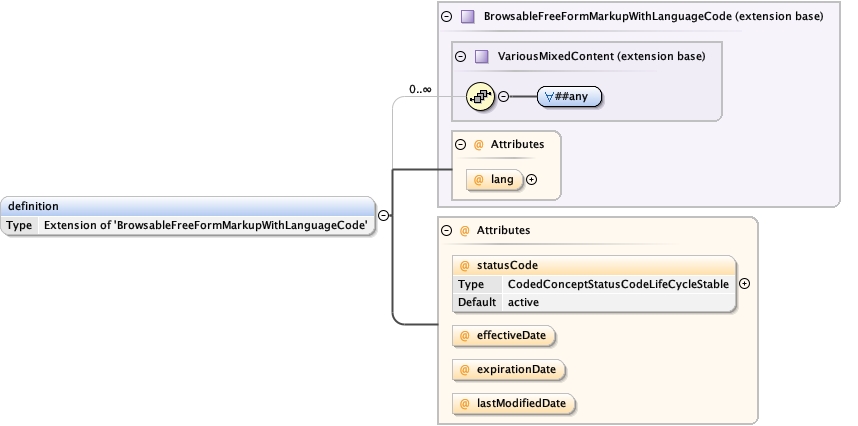

Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCodeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_definition_statusCodeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_definition_effectiveDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_definition_expirationDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_definition_lastModifiedDate
Type extension of BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
ANY element from ANY namespace
Attributes
QName Type Default Use Annotation
effectiveDate optional
expirationDate optional
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
lastModifiedDate optional
statusCode CodedConceptStatusCodeLifeCycleStable active optional
Status of the coded concept during the design phase
Source

<xs:element name="definition" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:annotation>
      <xs:documentation xml:lang="en-US">A definition of the coded concept</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
      <xs:extension base="BrowsableFreeFormMarkupWithLanguageCode">
        <!-- from old times for backward compatibility -->
        <xs:attribute name="statusCode" type="CodedConceptStatusCodeLifeCycleStable" use="optional" default="active">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">Status of the coded concept during the design phase</xs:documentation>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="effectiveDate" use="optional"/>
        <xs:attribute name="expirationDate" use="optional"/>
        <xs:attribute name="lastModifiedDate" use="optional"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / comment
Namespace No namespace

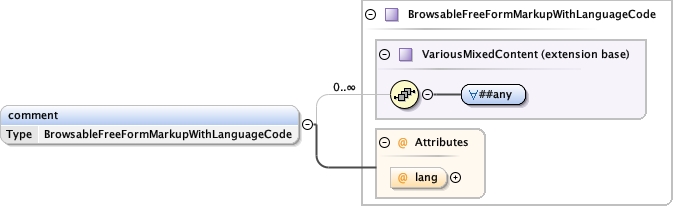

Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode
Type BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
mixed true
Model
ANY element from ANY namespace
Attributes
QName Type Use Annotation
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
Source

<xs:element name="comment" minOccurs="0" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
Element codedConceptBrowsable / loinc
Namespace No namespace
Annotations

container for LOINC properties
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_classDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_classTypeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_orderObsDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_firstReleaseDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_lastChangeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_unitsRequiredDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_exUnitsDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_exUCUMunitsDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_testRankDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_orderRankDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_loinc_siTestRank
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children class, classType, exUCUMunits, exUnits, firstRelease, lastChange, orderObs, orderRank, siTestRank, testRank, unitsRequired
Instance

<loinc>
  <class>{1,1}</class>
  <classType>{1,1}</classType>
  <orderObs>{1,1}</orderObs>
  <firstRelease>{1,1}</firstRelease>
  <lastChange>{1,1}</lastChange>
  <unitsRequired>{1,1}</unitsRequired>
  <exUnits>{1,1}</exUnits>
  <exUCUMunits>{1,1}</exUCUMunits>
  <testRank>{1,1}</testRank>
  <orderRank>{1,1}</orderRank>
  <siTestRank>{1,1}</siTestRank>
</loinc>
Source

<xs:element name="loinc" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">container for LOINC properties</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>LOINC</extension>
    </xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="class" minOccurs="1" maxOccurs="1"/>
      <xs:element name="classType" minOccurs="1" maxOccurs="1"/>
      <xs:element name="orderObs" minOccurs="1" maxOccurs="1"/>
      <xs:element name="firstRelease" minOccurs="1" maxOccurs="1"/>
      <xs:element name="lastChange" minOccurs="1" maxOccurs="1"/>
      <xs:element name="unitsRequired" minOccurs="1" maxOccurs="1"/>
      <xs:element name="exUnits" minOccurs="1" maxOccurs="1"/>
      <xs:element name="exUCUMunits" minOccurs="1" maxOccurs="1"/>
      <xs:element name="testRank" minOccurs="1" maxOccurs="1"/>
      <xs:element name="orderRank" minOccurs="1" maxOccurs="1"/>
      <xs:element name="siTestRank" minOccurs="1" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / loinc / class
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="class" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / classType
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="classType" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / orderObs
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="orderObs" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / firstRelease
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="firstRelease" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / lastChange
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="lastChange" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / unitsRequired
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="unitsRequired" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / exUnits
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="exUnits" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / exUCUMunits
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="exUCUMunits" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / testRank
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="testRank" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / orderRank
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="orderRank" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / loinc / siTestRank
Namespace No namespace
Diagram
Diagram
Properties
minOccurs 1
maxOccurs 1
Source

<xs:element name="siTestRank" minOccurs="1" maxOccurs="1"/>
Element codedConceptBrowsable / valueSet
Namespace No namespace
Annotations

Associated value set, important for normative associated value sets
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_valueSet_typeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_valueSet_id
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
id xs:string optional
id of the associated value set
type xs:string optional
type of value set link, example, normative etc.
Source

<xs:element name="valueSet" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Associated value set, important for normative associated value sets</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>LOINC</extension>
    </xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute name="type" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en-US">type of value set link, example, normative etc.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="id" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en-US">id of the associated value set</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / parent
Namespace No namespace
Annotations

List of stable parents of the coded concept
Diagram
DiagramDECOR_xsd_Complex_Type_ParentStable.tmp#ParentStable_pCodeDECOR_xsd_Complex_Type_ParentStable.tmp#ParentStable_subCountDECOR_xsd_Complex_Type_ParentStable.tmp#ParentStable_levelDECOR_xsd_Complex_Type_ParentStable.tmp#ParentStable_typeDECOR_xsd_Complex_Type_ParentStable.tmp#ParentStable_labelDECOR_xsd_Complex_Type_ParentStable.tmp#ParentStable
Type ParentStable
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children label
Instance

<parent level="" pCode="" subCount="" type="">
  <label lang="">{0,unbounded}</label>
</parent>
Attributes
QName Type Use
level xs:integer optional
pCode EnumerationString required
subCount SmallNonNegativeInteger required
type VocabType optional
Source

<xs:element name="parent" minOccurs="0" maxOccurs="unbounded" type="ParentStable">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">List of stable parents of the coded concept</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>SPED</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Element codedConceptBrowsable / child
Namespace No namespace
Annotations

List of stable children of the coded concept
Diagram
DiagramDECOR_xsd_Complex_Type_ChildStable.tmp#ChildStable_cCodeDECOR_xsd_Complex_Type_ChildStable.tmp#ChildStable_subCountDECOR_xsd_Complex_Type_ChildStable.tmp#ChildStable_sequenceDECOR_xsd_Complex_Type_ChildStable.tmp#ChildStable_levelDECOR_xsd_Complex_Type_ChildStable.tmp#ChildStable_typeDECOR_xsd_Complex_Type_ChildStable.tmp#ChildStable_labelDECOR_xsd_Complex_Type_ChildStable.tmp#ChildStable
Type ChildStable
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children label
Instance

<child cCode="" level="" sequence="" subCount="" type="">
  <label lang="">{0,unbounded}</label>
</child>
Attributes
QName Type Use
cCode EnumerationString required
level xs:integer optional
sequence optional
subCount SmallNonNegativeInteger required
type VocabType optional
Source

<xs:element name="child" minOccurs="0" maxOccurs="unbounded" type="ChildStable">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">List of stable children of the coded concept</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>SPED</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Element codedConceptBrowsable / ancestor
Namespace No namespace
Annotations

List of stable ancestors of the coded concept
Diagram
DiagramDECOR_xsd_Complex_Type_AncestorStable.tmp#AncestorStable_distanceDECOR_xsd_Complex_Type_AncestorStable.tmp#AncestorStable
Type AncestorStable
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
distance SmallNonNegativeInteger optional
Source

<xs:element name="ancestor" minOccurs="0" maxOccurs="unbounded" type="AncestorStable">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">List of stable ancestors of the coded concept</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>SPED</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Element codedConceptBrowsable / ancSlf
Namespace No namespace
Annotations

List of stable ancestors of self of the coded concept
Diagram
DiagramDECOR_xsd_Complex_Type_AncestorOrSelfStable.tmp#AncestorOrSelfStable_distanceDECOR_xsd_Complex_Type_AncestorOrSelfStable.tmp#AncestorOrSelfStable
Type AncestorOrSelfStable
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
distance SmallNonNegativeInteger optional
Source

<xs:element name="ancSlf" minOccurs="0" maxOccurs="unbounded" type="AncestorOrSelfStable">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">List of stable ancestors of self of the coded concept</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>SPED</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Element codedConceptBrowsable / relGrp
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_relGrp_grpIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_relGrp_relation
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children relation
Instance

<relGrp grpId="">
  <relation destCode="" effectiveDate="" typeCode="">{0,unbounded}</relation>
</relGrp>
Attributes
QName Type Use
grpId optional
Source

<xs:element name="relGrp" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:annotation>
      <xs:documentation xml:lang="en-US">Group of relationships that belong together</xs:documentation>
      <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
        <extension>SPED</extension>
      </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
      <xs:element name="relation" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="ancest" minOccurs="0" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">Ancestors of the related concept, used for intensional valueset definitions</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="label" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
            <xs:element name="typeLabel" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
          </xs:sequence>
          <xs:attribute name="destCode" use="optional"/>
          <xs:attribute name="typeCode" use="optional"/>
          <xs:attribute name="effectiveDate" use="optional"/>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="grpId" use="optional"/>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / relGrp / relation
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_relGrp_codedConceptBrowsable_codedConceptBrowsable_relGrp_relation_destCodeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_relGrp_codedConceptBrowsable_codedConceptBrowsable_relGrp_relation_typeCodeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_relGrp_codedConceptBrowsable_codedConceptBrowsable_relGrp_relation_effectiveDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_relGrp_codedConceptBrowsable_codedConceptBrowsable_relGrp_relation_ancestDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_relGrp_codedConceptBrowsable_codedConceptBrowsable_relGrp_relation_labelDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_relGrp_codedConceptBrowsable_codedConceptBrowsable_relGrp_relation_typeLabel
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children ancest, label, typeLabel
Instance

<relation destCode="" effectiveDate="" typeCode="">
  <ancest>{0,unbounded}</ancest>
  <label lang="">{1,unbounded}</label>
  <typeLabel lang="">{1,unbounded}</typeLabel>
</relation>
Attributes
QName Type Use
destCode optional
effectiveDate optional
typeCode optional
Source

<xs:element name="relation" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="ancest" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation xml:lang="en-US">Ancestors of the related concept, used for intensional valueset definitions</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="label" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
      <xs:element name="typeLabel" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="destCode" use="optional"/>
    <xs:attribute name="typeCode" use="optional"/>
    <xs:attribute name="effectiveDate" use="optional"/>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / relGrp / relation / ancest
Namespace No namespace
Annotations

Ancestors of the related concept, used for intensional valueset definitions
Diagram
Diagram
Properties
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="ancest" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Ancestors of the related concept, used for intensional valueset definitions</xs:documentation>
  </xs:annotation>
</xs:element>
Element codedConceptBrowsable / relGrp / relation / label
Namespace No namespace
Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode
Type BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
ANY element from ANY namespace
Attributes
QName Type Use Annotation
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
Source

<xs:element name="label" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
Element codedConceptBrowsable / relGrp / relation / typeLabel
Namespace No namespace
Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode
Type BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
ANY element from ANY namespace
Attributes
QName Type Use Annotation
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
Source

<xs:element name="typeLabel" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
Element codedConceptBrowsable / refsets
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_refsets_refset
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children refset
Instance

<refsets>
  <refset refsetId="">{0,unbounded}</refset>
</refsets>
Source

<xs:element name="refsets" minOccurs="0" maxOccurs="1">
  <xs:complexType>
    <xs:annotation>
      <xs:documentation xml:lang="en-US">List of refset</xs:documentation>
      <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
        <extension>SNOMED</extension>
      </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
      <xs:element name="refset" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="label" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
          </xs:sequence>
          <xs:attribute name="refsetId" type="xs:string"/>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / refsets / refset
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_refsets_codedConceptBrowsable_codedConceptBrowsable_refsets_refset_refsetIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_refsets_codedConceptBrowsable_codedConceptBrowsable_refsets_refset_label
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children label
Instance

<refset refsetId="">
  <label lang="">{1,unbounded}</label>
</refset>
Attributes
QName Type Use
refsetId xs:string optional
Source

<xs:element name="refset" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="label" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="refsetId" type="xs:string"/>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / refsets / refset / label
Namespace No namespace
Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode
Type BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
ANY element from ANY namespace
Attributes
QName Type Use Annotation
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
Source

<xs:element name="label" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
Element codedConceptBrowsable / maps
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_map
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children map
Instance

<maps>
  <map correlation="" correlationId="" mapAdvice="" mapGroup="" mapPriority="" mapRule="" mapTarget="" refset="" refsetId="">{0,unbounded}</map>
</maps>
Source

<xs:element name="maps" minOccurs="0" maxOccurs="1">
  <xs:complexType>
    <xs:annotation>
      <xs:documentation xml:lang="en-US">List of maps</xs:documentation>
      <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
        <extension>SNOMED</extension>
      </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
      <xs:element name="map" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:attribute name="refsetId" type="xs:string"/>
          <xs:attribute name="mapGroup" type="xs:string"/>
          <xs:attribute name="mapPriority" type="xs:string"/>
          <xs:attribute name="mapRule" type="xs:string"/>
          <xs:attribute name="mapAdvice" type="xs:string"/>
          <xs:attribute name="mapTarget" type="xs:string"/>
          <xs:attribute name="correlationId" type="xs:string"/>
          <xs:attribute name="refset" type="xs:string"/>
          <xs:attribute name="correlation" type="xs:string"/>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / maps / map
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_refsetIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_mapGroupDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_mapPriorityDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_mapRuleDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_mapAdviceDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_mapTargetDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_correlationIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_refsetDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_maps_codedConceptBrowsable_codedConceptBrowsable_maps_map_correlation
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
correlation xs:string optional
correlationId xs:string optional
mapAdvice xs:string optional
mapGroup xs:string optional
mapPriority xs:string optional
mapRule xs:string optional
mapTarget xs:string optional
refset xs:string optional
refsetId xs:string optional
Source

<xs:element name="map" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:attribute name="refsetId" type="xs:string"/>
    <xs:attribute name="mapGroup" type="xs:string"/>
    <xs:attribute name="mapPriority" type="xs:string"/>
    <xs:attribute name="mapRule" type="xs:string"/>
    <xs:attribute name="mapAdvice" type="xs:string"/>
    <xs:attribute name="mapTarget" type="xs:string"/>
    <xs:attribute name="correlationId" type="xs:string"/>
    <xs:attribute name="refset" type="xs:string"/>
    <xs:attribute name="correlation" type="xs:string"/>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / association
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_association_refsetIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_association_targetComponentIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_association_refsetLabelDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_association_targetLabel
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children refsetLabel, targetLabel
Instance

<association refsetId="" targetComponentId="">
  <refsetLabel lang="">{1,unbounded}</refsetLabel>
  <targetLabel lang="">{1,unbounded}</targetLabel>
</association>
Attributes
QName Type Use
refsetId xs:string optional
targetComponentId xs:string optional
Source

<xs:element name="association" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:annotation>
      <xs:documentation xml:lang="en-US">Associated concept, used for additional information on deprecated concepts</xs:documentation>
      <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
        <extension>SPED</extension>
      </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
      <xs:element name="refsetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
      <xs:element name="targetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
    </xs:sequence>
    <xs:attribute name="refsetId" type="xs:string"/>
    <xs:attribute name="targetComponentId" type="xs:string"/>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / association / refsetLabel
Namespace No namespace
Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode
Type BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
ANY element from ANY namespace
Attributes
QName Type Use Annotation
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
Source

<xs:element name="refsetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
Element codedConceptBrowsable / association / targetLabel
Namespace No namespace
Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode
Type BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
ANY element from ANY namespace
Attributes
QName Type Use Annotation
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
Source

<xs:element name="targetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
Element codedConceptBrowsable / attributeValue
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_attributeValue_refsetIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_attributeValue_valueIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_attributeValue_refsetLabelDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codedConceptBrowsable_attributeValue_valueLabel
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children refsetLabel, valueLabel
Instance

<attributeValue refsetId="" valueId="">
  <refsetLabel lang="">{1,unbounded}</refsetLabel>
  <valueLabel lang="">{1,unbounded}</valueLabel>
</attributeValue>
Attributes
QName Type Use
refsetId xs:string optional
valueId xs:string optional
Source

<xs:element name="attributeValue" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:annotation>
      <xs:documentation xml:lang="en-US">Associated refset attribute</xs:documentation>
      <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
        <extension>SNOMED</extension>
      </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
      <xs:element name="refsetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
      <xs:element name="valueLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
    </xs:sequence>
    <xs:attribute name="refsetId" type="xs:string"/>
    <xs:attribute name="valueId" type="xs:string"/>
  </xs:complexType>
</xs:element>
Element codedConceptBrowsable / attributeValue / refsetLabel
Namespace No namespace
Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode
Type BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
ANY element from ANY namespace
Attributes
QName Type Use Annotation
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
Source

<xs:element name="refsetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
Element codedConceptBrowsable / attributeValue / valueLabel
Namespace No namespace
Diagram
DiagramDECOR-datatypes_xsd_Complex_Type_VariousMixedContent.tmp#VariousMixedContentDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode_langDECOR-datatypes_xsd_Complex_Type_BrowsableFreeFormMarkupWithLanguageCode.tmp#BrowsableFreeFormMarkupWithLanguageCode
Type BrowsableFreeFormMarkupWithLanguageCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
ANY element from ANY namespace
Attributes
QName Type Use Annotation
lang LanguageCodeSimple optional
Indicates the language in which the marked up text is expressed
Source

<xs:element name="valueLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
Element codedConceptBrowsable / property
Namespace No namespace
Diagram
DiagramDECOR_xsd_Complex_Type_CodedConceptProperty.tmp#CodedConceptProperty_codeDECOR_xsd_Element_valueCode.tmp#valueCodeDECOR_xsd_Element_valueCoding.tmp#valueCodingDECOR_xsd_Element_valueString.tmp#valueStringDECOR_xsd_Element_valueInteger.tmp#valueIntegerDECOR_xsd_Element_valueBoolean.tmp#valueBooleanDECOR_xsd_Element_valueDateTime.tmp#valueDateTimeDECOR_xsd_Element_valueDecimal.tmp#valueDecimalDECOR_xsd_Complex_Type_CodedConceptProperty.tmp#CodedConceptProperty
Type CodedConceptProperty
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children valueBoolean, valueCode, valueCoding, valueDateTime, valueDecimal, valueInteger, valueString
Instance

<property code="">
  <valueCode code="">{0,unbounded}</valueCode>
  <valueCoding canonicalUri="" code="" codeSystem="">{0,unbounded}</valueCoding>
  <valueString value="">{0,unbounded}</valueString>
  <valueInteger value="">{0,unbounded}</valueInteger>
  <valueBoolean value="">{0,unbounded}</valueBoolean>
  <valueDateTime value="">{0,unbounded}</valueDateTime>
  <valueDecimal value="">{0,unbounded}</valueDecimal>
</property>
Attributes
QName Type Use
code EnumerationString optional
Source

<xs:element name="property" minOccurs="0" maxOccurs="unbounded" type="CodedConceptProperty"/>
Complex Type codedConceptBrowsable
Namespace No namespace
Annotations

This is a coded concept used for the Centralized ART-DECOR Terminology Service (CADTS), e.g. for the cross terminology CADTS browser.
It has a set of extensions, all classified as "denormalizing elements" that marked under the specific xs:appinfo
Diagram
DiagramDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_codeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_statusCodeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_levelDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_typeDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_moduleIdDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_sufficientlyDefinedDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_effectiveDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_expirationDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_lastModifiedDateDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_designationDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_definitionDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_commentDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_loincDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_valueSetDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_parentDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_childDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_ancestorDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_ancSlfDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_relGrpDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_refsetsDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_mapsDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_associationDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_attributeValueDECOR_xsd_Complex_Type_codedConceptBrowsable.tmp#codedConceptBrowsable_property
Used by
Model
Children ancSlf, ancestor, association, attributeValue, child, comment, definition, designation, loinc, maps, parent, property, refsets, relGrp, valueSet
Attributes
QName Type Default Use Annotation
code EnumerationString required
An identifier that uniquely names the class or "concept" within the context of the defining Code System
effectiveDate optional
expirationDate optional
lastModifiedDate optional
level xs:integer optional
Level, optional, calculated
moduleId xs:string optional
statusCode CodedConceptStatusCodeLifeCycleStable active optional
Status of the coded concept during the design phase
sufficientlyDefined xs:boolean optional
type VocabType optional
Source

<xs:complexType name="codedConceptBrowsable">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">This is a coded concept used for the Centralized ART-DECOR Terminology Service (CADTS), e.g. for the cross terminology CADTS browser. It has a set of extensions, all classified as "denormalizing elements" that marked under the specific xs:appinfo</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="designation" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation xml:lang="en-US">This is a browsable coded concept designation used for ART-DECOR Terminology Service (CADTS). Some elements or attributes use shorter names for less space occupancy in the browsable format, g use BrowsableFreeFormMarkupWithLanguageCode</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:annotation>
          <xs:documentation xml:lang="en-US">A description for the designation</xs:documentation>
        </xs:annotation>
        <xs:complexContent>
          <xs:extension base="BrowsableFreeFormMarkupWithLanguageCode">
            <xs:attribute name="use" type="BrowsableDesignationType" use="optional">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">Type of designation (for that language), preferred, synonym, abbreviation, fully specified name</xs:documentation>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="count" type="SmallNonNegativeInteger" use="optional">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">Word count of the designation, used for sorting search results.</xs:documentation>
                <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
                  <extension>SPED</extension>
                </xs:appinfo>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="length" type="SmallNonNegativeInteger" use="required">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">String length of the designation, used for sorting search results.</xs:documentation>
                <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
                  <extension>SPED</extension>
                </xs:appinfo>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="effectiveDate" use="optional"/>
            <xs:attribute name="expirationDate" use="optional"/>
            <xs:attribute name="lastModifiedDate" use="optional"/>
            <!-- from old times for backward compatibility -->
            <xs:attribute name="statusCode" type="CodedConceptStatusCodeLifeCycleStable" use="optional" default="active">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">Status of the coded concept during the design phase</xs:documentation>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="component" type="xs:string" use="optional">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
                <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
                  <extension>LOINC</extension>
                </xs:appinfo>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="property" type="xs:string" use="optional">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
                <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
                  <extension>LOINC</extension>
                </xs:appinfo>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="timing" type="xs:string" use="optional">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
                <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
                  <extension>LOINC</extension>
                </xs:appinfo>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="system" type="xs:string" use="optional">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
                <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
                  <extension>LOINC</extension>
                </xs:appinfo>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="scale" type="xs:string" use="optional">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
                <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
                  <extension>LOINC</extension>
                </xs:appinfo>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="method" type="xs:string" use="optional">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
                <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
                  <extension>LOINC</extension>
                </xs:appinfo>
              </xs:annotation>
            </xs:attribute>
          </xs:extension>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="definition" minOccurs="0" maxOccurs="unbounded">
      <xs:complexType>
        <xs:annotation>
          <xs:documentation xml:lang="en-US">A definition of the coded concept</xs:documentation>
        </xs:annotation>
        <xs:complexContent>
          <xs:extension base="BrowsableFreeFormMarkupWithLanguageCode">
            <!-- from old times for backward compatibility -->
            <xs:attribute name="statusCode" type="CodedConceptStatusCodeLifeCycleStable" use="optional" default="active">
              <xs:annotation>
                <xs:documentation xml:lang="en-US">Status of the coded concept during the design phase</xs:documentation>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="effectiveDate" use="optional"/>
            <xs:attribute name="expirationDate" use="optional"/>
            <xs:attribute name="lastModifiedDate" use="optional"/>
          </xs:extension>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="comment" minOccurs="0" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
    <xs:element name="loinc" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="en-US">container for LOINC properties</xs:documentation>
        <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
          <extension>LOINC</extension>
        </xs:appinfo>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="class" minOccurs="1" maxOccurs="1"/>
          <xs:element name="classType" minOccurs="1" maxOccurs="1"/>
          <xs:element name="orderObs" minOccurs="1" maxOccurs="1"/>
          <xs:element name="firstRelease" minOccurs="1" maxOccurs="1"/>
          <xs:element name="lastChange" minOccurs="1" maxOccurs="1"/>
          <xs:element name="unitsRequired" minOccurs="1" maxOccurs="1"/>
          <xs:element name="exUnits" minOccurs="1" maxOccurs="1"/>
          <xs:element name="exUCUMunits" minOccurs="1" maxOccurs="1"/>
          <xs:element name="testRank" minOccurs="1" maxOccurs="1"/>
          <xs:element name="orderRank" minOccurs="1" maxOccurs="1"/>
          <xs:element name="siTestRank" minOccurs="1" maxOccurs="1"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="valueSet" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation xml:lang="en-US">Associated value set, important for normative associated value sets</xs:documentation>
        <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
          <extension>LOINC</extension>
        </xs:appinfo>
      </xs:annotation>
      <xs:complexType>
        <xs:attribute name="type" type="xs:string">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">type of value set link, example, normative etc.</xs:documentation>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="id" type="xs:string">
          <xs:annotation>
            <xs:documentation xml:lang="en-US">id of the associated value set</xs:documentation>
          </xs:annotation>
        </xs:attribute>
      </xs:complexType>
    </xs:element>
    <xs:choice maxOccurs="unbounded">
      <xs:annotation>
        <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
          <extension>SPED</extension>
        </xs:appinfo>
      </xs:annotation>
      <xs:element name="parent" minOccurs="0" maxOccurs="unbounded" type="ParentStable">
        <xs:annotation>
          <xs:documentation xml:lang="en-US">List of stable parents of the coded concept</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SPED</extension>
          </xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="child" minOccurs="0" maxOccurs="unbounded" type="ChildStable">
        <xs:annotation>
          <xs:documentation xml:lang="en-US">List of stable children of the coded concept</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SPED</extension>
          </xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="ancestor" minOccurs="0" maxOccurs="unbounded" type="AncestorStable">
        <xs:annotation>
          <xs:documentation xml:lang="en-US">List of stable ancestors of the coded concept</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SPED</extension>
          </xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="ancSlf" minOccurs="0" maxOccurs="unbounded" type="AncestorOrSelfStable">
        <xs:annotation>
          <xs:documentation xml:lang="en-US">List of stable ancestors of self of the coded concept</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SPED</extension>
          </xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:choice>
    <xs:element name="relGrp" minOccurs="0" maxOccurs="unbounded">
      <xs:complexType>
        <xs:annotation>
          <xs:documentation xml:lang="en-US">Group of relationships that belong together</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SPED</extension>
          </xs:appinfo>
        </xs:annotation>
        <xs:sequence>
          <xs:element name="relation" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="ancest" minOccurs="0" maxOccurs="unbounded">
                  <xs:annotation>
                    <xs:documentation xml:lang="en-US">Ancestors of the related concept, used for intensional valueset definitions</xs:documentation>
                  </xs:annotation>
                </xs:element>
                <xs:element name="label" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
                <xs:element name="typeLabel" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
              </xs:sequence>
              <xs:attribute name="destCode" use="optional"/>
              <xs:attribute name="typeCode" use="optional"/>
              <xs:attribute name="effectiveDate" use="optional"/>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="grpId" use="optional"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="refsets" minOccurs="0" maxOccurs="1">
      <xs:complexType>
        <xs:annotation>
          <xs:documentation xml:lang="en-US">List of refset</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SNOMED</extension>
          </xs:appinfo>
        </xs:annotation>
        <xs:sequence>
          <xs:element name="refset" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="label" type="BrowsableFreeFormMarkupWithLanguageCode" minOccurs="1" maxOccurs="unbounded"/>
              </xs:sequence>
              <xs:attribute name="refsetId" type="xs:string"/>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="maps" minOccurs="0" maxOccurs="1">
      <xs:complexType>
        <xs:annotation>
          <xs:documentation xml:lang="en-US">List of maps</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SNOMED</extension>
          </xs:appinfo>
        </xs:annotation>
        <xs:sequence>
          <xs:element name="map" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:attribute name="refsetId" type="xs:string"/>
              <xs:attribute name="mapGroup" type="xs:string"/>
              <xs:attribute name="mapPriority" type="xs:string"/>
              <xs:attribute name="mapRule" type="xs:string"/>
              <xs:attribute name="mapAdvice" type="xs:string"/>
              <xs:attribute name="mapTarget" type="xs:string"/>
              <xs:attribute name="correlationId" type="xs:string"/>
              <xs:attribute name="refset" type="xs:string"/>
              <xs:attribute name="correlation" type="xs:string"/>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="association" minOccurs="0" maxOccurs="unbounded">
      <xs:complexType>
        <xs:annotation>
          <xs:documentation xml:lang="en-US">Associated concept, used for additional information on deprecated concepts</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SPED</extension>
          </xs:appinfo>
        </xs:annotation>
        <xs:sequence>
          <xs:element name="refsetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
          <xs:element name="targetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
        </xs:sequence>
        <xs:attribute name="refsetId" type="xs:string"/>
        <xs:attribute name="targetComponentId" type="xs:string"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="attributeValue" minOccurs="0" maxOccurs="unbounded">
      <xs:complexType>
        <xs:annotation>
          <xs:documentation xml:lang="en-US">Associated refset attribute</xs:documentation>
          <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
            <extension>SNOMED</extension>
          </xs:appinfo>
        </xs:annotation>
        <xs:sequence>
          <xs:element name="refsetLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
          <xs:element name="valueLabel" minOccurs="1" maxOccurs="unbounded" type="BrowsableFreeFormMarkupWithLanguageCode"/>
        </xs:sequence>
        <xs:attribute name="refsetId" type="xs:string"/>
        <xs:attribute name="valueId" type="xs:string"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="property" minOccurs="0" maxOccurs="unbounded" type="CodedConceptProperty"/>
  </xs:sequence>
  <xs:attribute name="code" type="EnumerationString" use="required">
    <xs:annotation>
      <xs:documentation xml:lang="en-US">An identifier that uniquely names the class or "concept" within the context of the defining Code System</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="statusCode" type="CodedConceptStatusCodeLifeCycleStable" use="optional" default="active">
    <xs:annotation>
      <xs:documentation xml:lang="en-US">Status of the coded concept during the design phase</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="level" type="xs:integer" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="en-US">Level, optional, calculated</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="type" type="VocabType" use="optional"/>
  <xs:attribute name="moduleId" type="xs:string" use="optional"/>
  <xs:attribute name="sufficientlyDefined" type="xs:boolean" use="optional"/>
  <xs:attribute name="effectiveDate" use="optional"/>
  <xs:attribute name="expirationDate" use="optional"/>
  <xs:attribute name="lastModifiedDate" use="optional"/>
</xs:complexType>
Attribute codedConceptBrowsable / designation / @use
Namespace No namespace
Annotations

Type of designation (for that language), preferred, synonym, abbreviation, fully specified name
Type BrowsableDesignationType
Properties
use optional
Facets
enumeration pref
enumeration syn
enumeration abbr
enumeration fsn
enumeration lfsn
enumeration rel
enumeration prefShrt
enumeration prefPat
enumeration prefPatB1
Used by
Source

<xs:attribute name="use" type="BrowsableDesignationType" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Type of designation (for that language), preferred, synonym, abbreviation, fully specified name</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @count
Namespace No namespace
Annotations

Word count of the designation, used for sorting search results.
Type SmallNonNegativeInteger
Properties
use optional
Facets
maxExclusive 1000000
Used by
Source

<xs:attribute name="count" type="SmallNonNegativeInteger" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Word count of the designation, used for sorting search results.</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>SPED</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @length
Namespace No namespace
Annotations

String length of the designation, used for sorting search results.
Type SmallNonNegativeInteger
Properties
use required
Facets
maxExclusive 1000000
Used by
Source

<xs:attribute name="length" type="SmallNonNegativeInteger" use="required">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">String length of the designation, used for sorting search results.</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>SPED</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @effectiveDate
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="effectiveDate" use="optional"/>
Attribute codedConceptBrowsable / designation / @expirationDate
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="expirationDate" use="optional"/>
Attribute codedConceptBrowsable / designation / @lastModifiedDate
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="lastModifiedDate" use="optional"/>
Attribute codedConceptBrowsable / designation / @statusCode
Namespace No namespace
Annotations

Status of the coded concept during the design phase
Type CodedConceptStatusCodeLifeCycleStable
Properties
use optional
default active
Facets
enumeration draft
Draft
enumeration active
Active
enumeration retired
No longer fit for use. Information available for historical reference.
enumeration experimental
Provided for trial, but may be removed in the future
Used by
Source

<xs:attribute name="statusCode" type="CodedConceptStatusCodeLifeCycleStable" use="optional" default="active">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Status of the coded concept during the design phase</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @component
Namespace No namespace
Annotations

LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
Type xs:string
Properties
use optional
Used by
Source

<xs:attribute name="component" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>LOINC</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @property
Namespace No namespace
Annotations

LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
Type xs:string
Properties
use optional
Used by
Source

<xs:attribute name="property" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>LOINC</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @timing
Namespace No namespace
Annotations

LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
Type xs:string
Properties
use optional
Used by
Source

<xs:attribute name="timing" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>LOINC</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @system
Namespace No namespace
Annotations

LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
Type xs:string
Properties
use optional
Used by
Source

<xs:attribute name="system" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>LOINC</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @scale
Namespace No namespace
Annotations

LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
Type xs:string
Properties
use optional
Used by
Source

<xs:attribute name="scale" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>LOINC</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / designation / @method
Namespace No namespace
Annotations

LOINC axis (fsn) attributes of designation, can only appear if use=lfsn
Type xs:string
Properties
use optional
Used by
Source

<xs:attribute name="method" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">LOINC axis (fsn) attributes of designation, can only appear if use=lfsn</xs:documentation>
    <xs:appinfo source="https://docs.art-decor.org/denormalization-extensions">
      <extension>LOINC</extension>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / definition / @statusCode
Namespace No namespace
Annotations

Status of the coded concept during the design phase
Type CodedConceptStatusCodeLifeCycleStable
Properties
use optional
default active
Facets
enumeration draft
Draft
enumeration active
Active
enumeration retired
No longer fit for use. Information available for historical reference.
enumeration experimental
Provided for trial, but may be removed in the future
Used by
Source

<xs:attribute name="statusCode" type="CodedConceptStatusCodeLifeCycleStable" use="optional" default="active">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Status of the coded concept during the design phase</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / definition / @effectiveDate
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="effectiveDate" use="optional"/>
Attribute codedConceptBrowsable / definition / @expirationDate
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="expirationDate" use="optional"/>
Attribute codedConceptBrowsable / definition / @lastModifiedDate
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="lastModifiedDate" use="optional"/>
Attribute codedConceptBrowsable / valueSet / @type
Namespace No namespace
Annotations

type of value set link, example, normative etc.
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="type" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">type of value set link, example, normative etc.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / valueSet / @id
Namespace No namespace
Annotations

id of the associated value set
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">id of the associated value set</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / relGrp / relation / @destCode
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="destCode" use="optional"/>
Attribute codedConceptBrowsable / relGrp / relation / @typeCode
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="typeCode" use="optional"/>
Attribute codedConceptBrowsable / relGrp / relation / @effectiveDate
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="effectiveDate" use="optional"/>
Attribute codedConceptBrowsable / relGrp / @grpId
Namespace No namespace
Properties
use optional
Used by
Source

<xs:attribute name="grpId" use="optional"/>
Attribute codedConceptBrowsable / refsets / refset / @refsetId
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="refsetId" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @refsetId
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="refsetId" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @mapGroup
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="mapGroup" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @mapPriority
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="mapPriority" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @mapRule
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="mapRule" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @mapAdvice
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="mapAdvice" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @mapTarget
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="mapTarget" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @correlationId
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="correlationId" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @refset
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="refset" type="xs:string"/>
Attribute codedConceptBrowsable / maps / map / @correlation
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="correlation" type="xs:string"/>
Attribute codedConceptBrowsable / association / @refsetId
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="refsetId" type="xs:string"/>
Attribute codedConceptBrowsable / association / @targetComponentId
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="targetComponentId" type="xs:string"/>
Attribute codedConceptBrowsable / attributeValue / @refsetId
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="refsetId" type="xs:string"/>
Attribute codedConceptBrowsable / attributeValue / @valueId
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Source

<xs:attribute name="valueId" type="xs:string"/>
Attribute codedConceptBrowsable / @code
Namespace No namespace
Annotations

An identifier that uniquely names the class or "concept" within the context of the defining Code System
Type EnumerationString
Properties
use required
Facets
maxLength 128
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="code" type="EnumerationString" use="required">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">An identifier that uniquely names the class or "concept" within the context of the defining Code System</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / @statusCode
Namespace No namespace
Annotations

Status of the coded concept during the design phase
Type CodedConceptStatusCodeLifeCycleStable
Properties
use optional
default active
Facets
enumeration draft
Draft
enumeration active
Active
enumeration retired
No longer fit for use. Information available for historical reference.
enumeration experimental
Provided for trial, but may be removed in the future
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="statusCode" type="CodedConceptStatusCodeLifeCycleStable" use="optional" default="active">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Status of the coded concept during the design phase</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / @level
Namespace No namespace
Annotations

Level, optional, calculated
Type xs:integer
Properties
use optional
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="level" type="xs:integer" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Level, optional, calculated</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute codedConceptBrowsable / @type
Namespace No namespace
Type VocabType
Type hierarchy
Properties
use optional
Facets
maxLength 50
enumeration L
L Leaf; a term that has no children in the specialization hierarchy, and is selectable, and therefore deemed to be a leaf.
enumeration A
A Abstract; a term that has children in the specialization hierarchy, but is not, itself, selectable and therefore deemed
abstract.
enumeration S
S Specializable; a term that has children in the specialization hierarchy, and is also selectable and therefore deemed
specializable.
enumeration D
D Deprecated; a term that should not be used any longer
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="type" type="VocabType" use="optional"/>
Attribute codedConceptBrowsable / @moduleId
Namespace No namespace
Type xs:string
Properties
use optional
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="moduleId" type="xs:string" use="optional"/>
Attribute codedConceptBrowsable / @sufficientlyDefined
Namespace No namespace
Type xs:boolean
Properties
use optional
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="sufficientlyDefined" type="xs:boolean" use="optional"/>
Attribute codedConceptBrowsable / @effectiveDate
Namespace No namespace
Properties
use optional
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="effectiveDate" use="optional"/>
Attribute codedConceptBrowsable / @expirationDate
Namespace No namespace
Properties
use optional
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="expirationDate" use="optional"/>
Attribute codedConceptBrowsable / @lastModifiedDate
Namespace No namespace
Properties
use optional
Used by
Complex Type codedConceptBrowsable
Source

<xs:attribute name="lastModifiedDate" use="optional"/>
XML Schema documentation generated by ® XML Editor.
