Schema documentation for component issues

Element issues

Namespace

No namespace

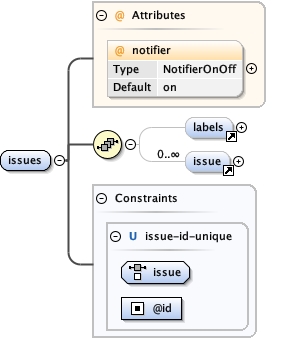

Diagram

Properties

content

complex

Used by

Element

decor

Model

labels{0,1} , issue*

Children

issue, labels

Instance

<issues notifier="on">
  <labels>{0,1}</labels>
  <issue displayName="" id="" priority="N" type="">{0,unbounded}</issue>
</issues>

Attributes

QName

Type

Default

Use

Annotation

notifier

NotifierOnOff

optional

Specifies whether the automatic notifier system (if activated) should notify all authors of the project about changes of any project issue. Default is "on"

Identity constraints

QName	Type	Refer	Selector	Field(s)
issue-id-unique	unique		issue	@id

Source

<xs:element name="issues">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="labels" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="issue" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="notifier" type="NotifierOnOff" use="optional" default="on">
      <xs:annotation>
        <xs:documentation xml:lang="en-US">Specifies whether the automatic notifier system (if activated) should notify all authors of the project about changes of any project issue. Default is "on"</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
  <xs:unique name="issue-id-unique">
    <xs:selector xpath="issue"/>
    <xs:field xpath="@id"/>
  </xs:unique>
</xs:element>

Attribute issues / @notifier

Namespace

No namespace

Annotations

Specifies whether the automatic notifier system (if activated) should notify all authors of the project about changes of any project issue. Default is "on"

Type

NotifierOnOff

Type hierarchy

xs:NMTOKEN
- EnumerationToken
  - NotifierOnOff

Properties

use	optional
default	on

Facets

maxLength

enumeration

Notifier on

enumeration

off

Notifier off

Used by

Element

issues

Source

<xs:attribute name="notifier" type="NotifierOnOff" use="optional" default="on">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Specifies whether the automatic notifier system (if activated) should notify all authors of the project about changes of any project issue. Default is "on"</xs:documentation>
  </xs:annotation>
</xs:attribute>
