Element labels
Namespace No namespace
Annotations

Contains definition of labels specific to this DECOR instance. A DECOR instance does require labeling of issues.
However once a label is used you SHOULD NOT alter/remove the label.

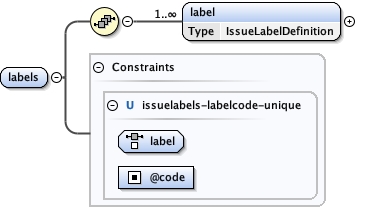

Diagram
DiagramDECOR_xsd_Element_labels.tmp#labels_label
Properties
content complex
Used by
Element issues
Model
Children label
Instance

<labels>
  <label code="" color="white" name="">{1,unbounded}</label>
</labels>
Identity constraints
QName Type Refer Selector Field(s)
issuelabels-labelcode-unique unique label @code
Source

<xs:element name="labels">
  <xs:annotation>
    <xs:documentation xml:lang="en-US">Contains definition of labels specific to this DECOR instance. A DECOR instance does require labeling of issues. However once a label is used you SHOULD NOT alter/remove the label.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="label" minOccurs="1" maxOccurs="unbounded" type="IssueLabelDefinition"/>
    </xs:sequence>
  </xs:complexType>
  <xs:unique name="issuelabels-labelcode-unique">
    <xs:selector xpath="label"/>
    <xs:field xpath="@code"/>
  </xs:unique>
</xs:element>
Element labels / label
Namespace No namespace

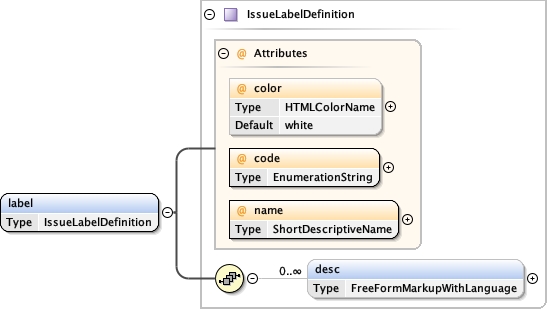

Diagram
DiagramDECOR_xsd_Complex_Type_IssueLabelDefinition.tmp#IssueLabelDefinition_colorDECOR_xsd_Complex_Type_IssueLabelDefinition.tmp#IssueLabelDefinition_codeDECOR_xsd_Complex_Type_IssueLabelDefinition.tmp#IssueLabelDefinition_nameDECOR_xsd_Complex_Type_IssueLabelDefinition.tmp#IssueLabelDefinition_descDECOR_xsd_Complex_Type_IssueLabelDefinition.tmp#IssueLabelDefinition
Type IssueLabelDefinition
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children desc
Instance

<label code="" color="white" name="">
  <desc language="" lastTranslated="" mimeType="">{0,unbounded}</desc>
</label>
Attributes
QName Type Default Use Annotation
code EnumerationString required
Contains a code that may be used to refer to this label.
color HTMLColorName white optional
Contains an HTML compatible reference to a color. Examples for the color red: red, #ff0000, rgb(255,0,0)
name ShortDescriptiveName required
Contains a descriptive name for this label.
Source

<xs:element name="label" minOccurs="1" maxOccurs="unbounded" type="IssueLabelDefinition"/>
